Automate with continuous integration

Configure CI to publish your Storybook and run Chromatic’s automation whenever you push code. Badge your PRs to get notified about test and review results.

Continuous integration

Configure CI

Before we begin, make sure you set the CHROMATIC_PROJECT_TOKEN environment variable when you run CI builds in your CI service’s configuration.

Integrate with popular CI tools like you would any other job. Run npm run chromatic to publish your Storybook. If UI Test or UI Review are enabled, it will return a non-zero exit code when there are changes. For example:

- run:
    command: npm install # install dependencies
- run:
    command: npm test # run your unit tests
- run:
    command: npm run chromatic # publish Storybook and run visual tests

Here’s how we recommend configuring Chromatic for popular CI services.

GitHub Actions

Chromatic has a GitHub Action. Add it to a workflow like so:

- uses: actions/checkout@v2
  with:
    fetch-depth: 0 # Required to retrieve git history
- uses: chromaui/action@v1
  with:
    token: ${{ secrets.GITHUB_TOKEN }}
    projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}

You’ll need to configure secrets in the settings tab at https://github.com/{YOUR_ORGANSATION}/{YOUR_REPOSITORY}/settings/secrets

GitHub Actions can run based on any GitHub event, but we recommend to run the workflow containing the Chromatic step on push event. The action will work on pull-request events too, although it comes with some caveats. All other events will not work.

For external PRs (PRs from forks of your repo) to receive the Chromatic projectToken, you’ll have to make the projectToken public by placing it in your package.json. Alternatively, you could disable Chromatic on external PRs or duplicate external PRs inside your repository.

In actions/checkout@v2, there’s no git history. Chromatic needs the git history in order to find the base build for baseline association. Add fetch-depth: 0.

CircleCI

In your .circleci/config.yml add the Chromatic command to you steps.

version: 2
jobs:
  build:
    # ... your existing setup

    steps:
      - checkout
      - run: npm install
      - run: npm test
      - run: npm chromatic -a <project-token> --exit-zero-on-changes

If you run jobs on external PRs, view CircleCI docs for a configuration guide. For more workflow inspiriation, checkout this Chromatic CircleCI Orb that was made by a customer.

Travis CI

Travis offers two type of builds for commits on pull requests: so called pr and push builds. It only makes sense to run Chromatic once per PR, so we suggest disabling Chromatic on pr builds for internal PRs (i.e. PRs that aren’t from forks). You should make sure that you have push builds turned on, and add the following code to your .travis.yml:

- if [[ $TRAVIS_EVENT_TYPE != 'pull_request' ||  $TRAVIS_PULL_REQUEST_SLUG != $TRAVIS_REPO_SLUG ]]; then npm run chromatic; fi

For external PRs (PRs from forks of your repo), the above code will ensure Chromatic does run on the pr build, because Travis does not trigger push builds in such cases.

Note: We recommend running Chromatic on push builds as pr builds can't always run and fall out of the normal git ancestry. For instance, if you change the base branch of a PR, you may find that you need to re-approve changes as some history may be lost.

Chromatic does work with Travis pr builds however!

Jenkins

Add the following command to the steps section of your Jenkinsfile:

sh 'npm run chromatic'

If you’re using Jenkins’ GitHub PR plugin, choose the ghprbPullId specifier for the refspec, and ensure you’ve set the Branch Specifier to ${ghprbActualCommit}.

UI Test and UI Review

UI Tests and UI Review rely on branch and baseline detection to keep track of snapshots. We recommend this CI configuration.

Command exit code for “required” checks

If you are using pull request statuses to as required checks before merging, you may not want your CI job to fail if test snapshots render without errors (but with changes). To achieve this, pass the flag --exit-zero-on-changes to the chromatic command, and your CI job will continue in such cases.

When using --exit-zero-on-changes your CI job will still stop and fail if your Storybook contains stories that error. If you’d prefer Chromatic never to block your CI job, you can use npm run chromatic || true.

Re-run failed builds after verifying UI test results

Builds that contain visual changes need to be verified. They will fail if you are not using --exit-zero-on-changes. Once you accept all the changes, re-run the build using your CI tool and the chromatic job will pass.

If you deny any change, you will need to make the necessary code changes to fix the test (and thus start a new CI build) to get Chromatic to pass again.

Maintain a clean “master” branch

A clean master branch is a development best practice and highly recommended for Chromatic. In practice, this means ensuring that test builds in your master branch are passing.

If the builds are a result of direct commits to master, you will need to accept changes to keep master clean. If they’re merged from feature-branches, you will need to make sure those branches are passing before you merge into master.

GitHub squash/rebase merge and the "master" branch

GitHub’s squash/rebase merge functionality creates new commits that have no association to the branch being merged. That means Chromatic will not know which changes accepted on that branch should be baselines on master. What’s more, you’ll have to re-review snapshots on master even if you already accepted them elsewhere.

To resolve this, we recommend you maintain a clean master branch and use --auto-accept-changes as mentioned here. For example:

if [ "${CIRCLE_BRANCH}" != "master" ];
then
  yarn chromatic
else
  # We know any changes that make it to master *must* have been accepted
  yarn chromatic --auto-accept-changes
fi

Run Chromatic on external forks of open source projects

You can enable PR checks for external forks by sharing your project-token where you configured the Chromatic command (often in package.json or your CI config).

There are tradeoffs. Sharing project-token‘s allows contributors and others to run Chromatic. They’ll be able to use your snapshots. They will not be able to get access to your account, settings, or accept baselines. This can be an acceptable tradeoff for open source projects who value community contributions.

Skipping builds for certain branches

Sometimes you might want to skip running a build for a certain branch, but still have Chromatic mark the latest commit on that branch as “passed”. Otherwise pull requests could be blocked due to required checks that remain pending. To avoid this issue, you can run chromatic with the --skip flag. This flag accepts a branch name or glob pattern.

One use case for this feature is skipping builds for branches created by a bot. For instance, Dependabot automatically updates a projects dependencies. Although some dependencies can result in UI changes, you might not find it worthwhile to run Chromatic for every single dependency update. Instead, you could rely on Chromatic running against the master or develop branch.

To skip builds for dependabot branches, use the following:

chromatic --skip 'dependabot/**'

To apply this to multiple branches, use an “extended glob”. See picomatch for details.

chromatic --skip '@(renovate/**|dependabot/**)'

Pull request checks

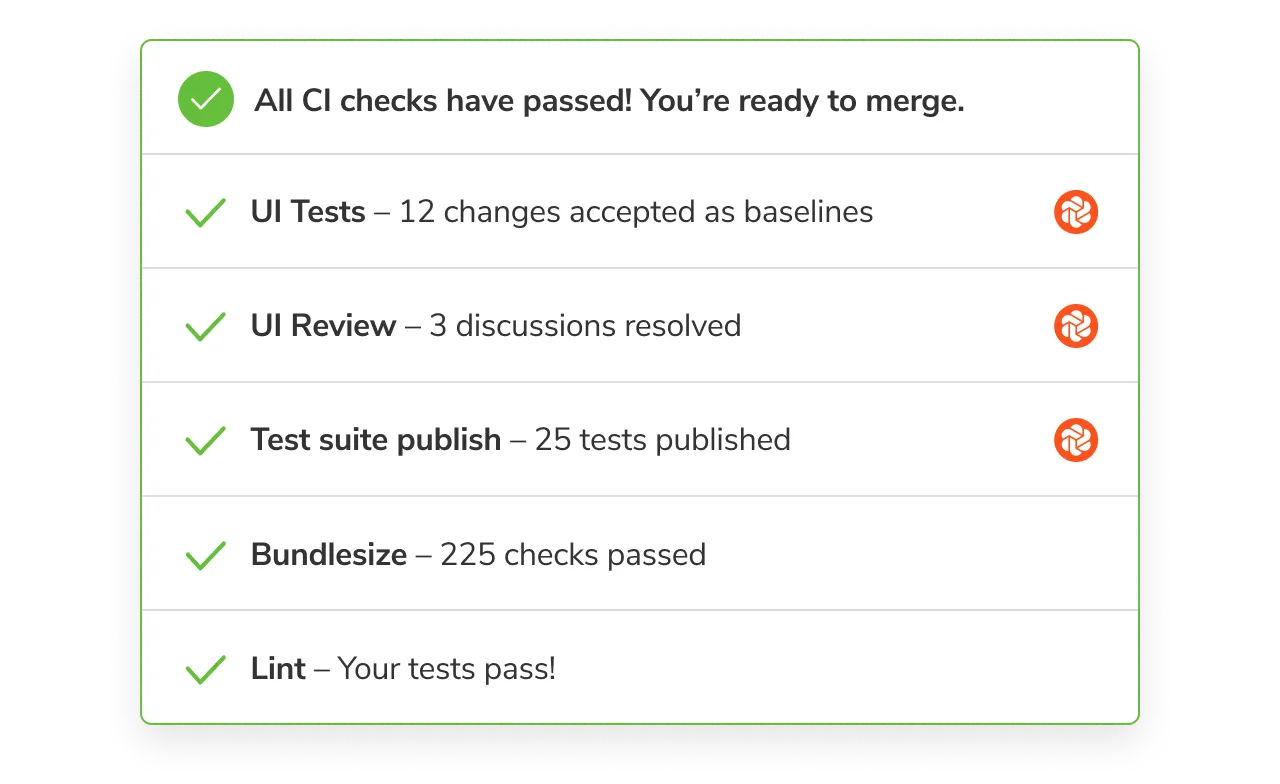

When a build runs it will automatically add a PR status check to the current pull request indicating the state of the build. By default, you’ll see Storybook Publish. If you enabled UI Tests or UI Review you’ll also see their respective checks.

GitHub, Bitbucket, or GitLab projects that are linked to a repository get this feature out of the box. If you use other version control services to host your code, you can write a custom CI script to add a check for Chromatic (via your CI provider).

Require checks in GitHub, GitLab, or Bitbucket to ensure they are completed before merging.

PR badges

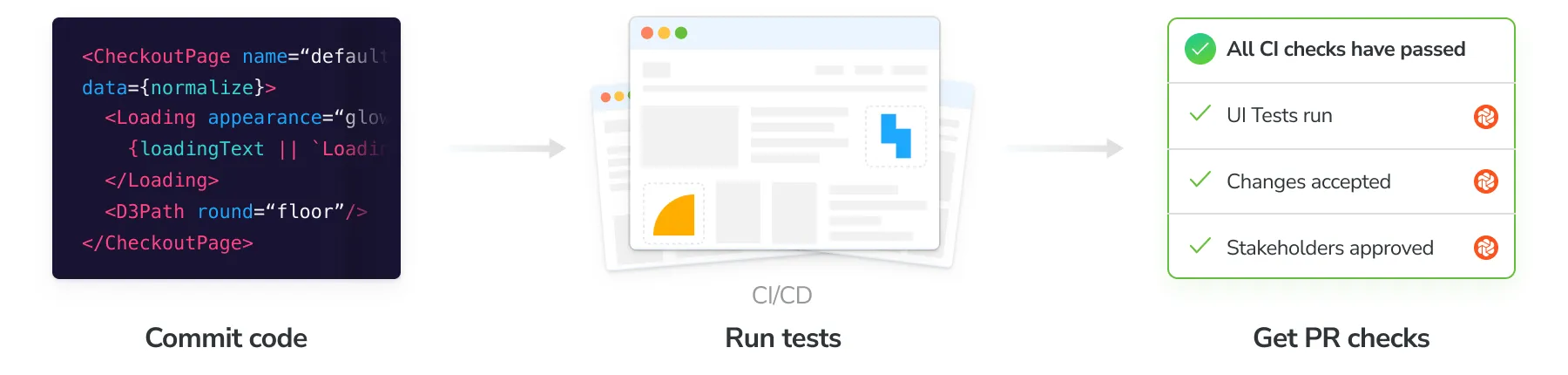

How tools work together affects your development speed. Learn the recommended Chromatic workflow.

Read next chapter


Frequently asked questions

Should I run Chromatic on "push" or "pr/merge" commits in my CI?

Several CI systems offer the option of running build on either the commit that was pushed to a branch for a PR, or on a “merge” commit between that branch and the base branch (typically master).

Merge commits don’t persist in the history of your git repository, that can cause Chromatic’s baselines to be lost in certain situations. We advise not running Chromatic tests on merge commits and instead running them on the regular “push” commits. How to do this differs depending on your CI provider:

  • For Travis, ensure you run Chromatic on push builds. Read more below.

  • For GitHub Actions, choose the push event.

  • For Jenkins’ GitHub PR plugin, choose the ghprbPullId specifier.

Hide the CI messages in the web app

Chromatic detects CI test runs for most services. But it’s not possible for every system, which results in users seeing persistent “Setup CI / Automation” messages in the UI.

If this is happening to you, prepend CI=true to your test command like so CI=true yarn chromatic... to hide the “Setup CI” messages in Chromatic. Learn more
